Forklift 'Cross Beam' Crane Jib

SKU

forklift-jib-CBJ

Model Comparison Table

Model Ref	Capacity In Jib Position [kg / load centre mm]	Capacity In Beam Position [kg / load centre mm]
CBJ 250-2000	500 / 2000	2000 / 500

Cross beam forklift jib for use as jib or spreader beam

Your Peace Of Mind

All our products come fully tested and certificated in accordance with the Machinery Directive (Directive 2006/42/EC of the European Parliament) and UKCA requirements. We take Health & Safety seriously, and in doing so ensure you're supplied with a product that meets all HSE requirements.

Payment & Delivery

Pricing & Payment

All prices shown are in GBP and exclude VAT as default.

Delivery

We deliver nationwide and overseas, however, deliveries outside of the UK Mainland would require us to obtain additional shipping charges from our shipping agent, so please allow a little extra time for this during quoting.

Description

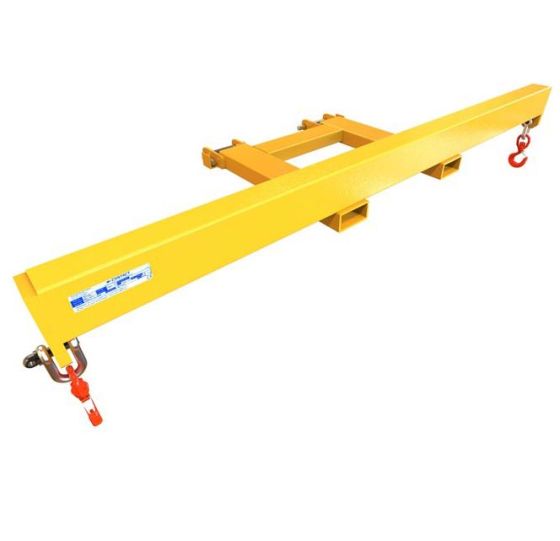

Our Cross Beam jib offers the dual flexibility of supporting a load along the forklift truck length like a traditional forklift jib or lifting a load at right angles to the forklift truck, like a spreader beam. With the Cross Beam jib, long or wide loads can be handled all off the one attachment.

When in the jib arm position, the lifting capacity of the beam is 500kg, and when in the spreader beam position, the lifting capacity of the beam is 2000kg. The beam length and width is 2000mm. A safety chain secures the Cross Beam jib to the lift truck forks.

Supplied with two hooks and shackles.

Supplied with 3 year warranty, fully tested & certificated

Features

• Dual function for use as forklift jib or spreader beam making it flexible for different load handling requirements

• Rated capacity 500kgs when in jib position and 2000kg when in spreader beam position

• Safety securing chain to allow safe fastening to forklift truck

• Long arm reach and spread making it suitable for handling long loads safely

• Large fork pockets for instant 'drive in' fitting to lift truck, making it quick and simple to fit and remove from lift truck forks

• 'CE' marked and supplied with Certificate of Conformity for Health & Safety Regulations
